DC Fuse
Standard:IEC 60269-6,GB/T 13539.6 Interrupting Capacity (Time Constant:1-3ms) 20,000 amperes at 1500V DC (1A-10A) 20,000 amperes at 1250V DC (12A-20A) 20,000 amperes at 1000V DC (25A-30A)
SRD-10Lg PV 1A-30A Photovoltaic Fuse
Description
Application
Standard:IEC 60269-6,GB/T 13539.6
Interrupting Capacity (Time Constant:1-3ms)
20,000 amperes at 1500V DC (1A-10A)
20,000 amperes at 1250V DC (12A-20A)
20,000 amperes at 1000V DC (25A-30A)

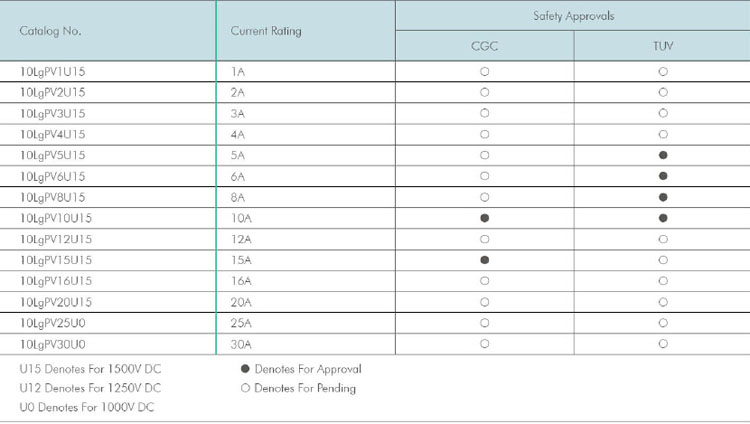

Specifications
Electrical Characteristics

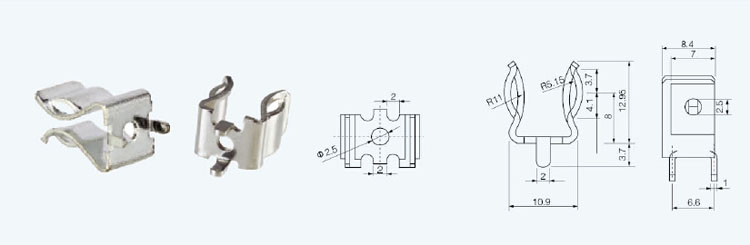

Recommended fuse-base for 10mm*85mm fuses
Sww model of product:ShF-103D SHF-104A

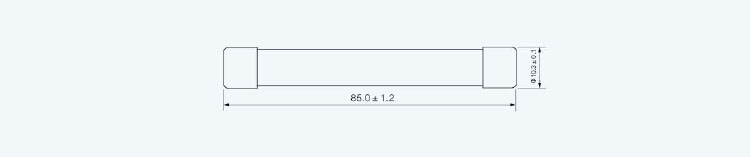

Dimensions(mm)
SRD-10Lg PV

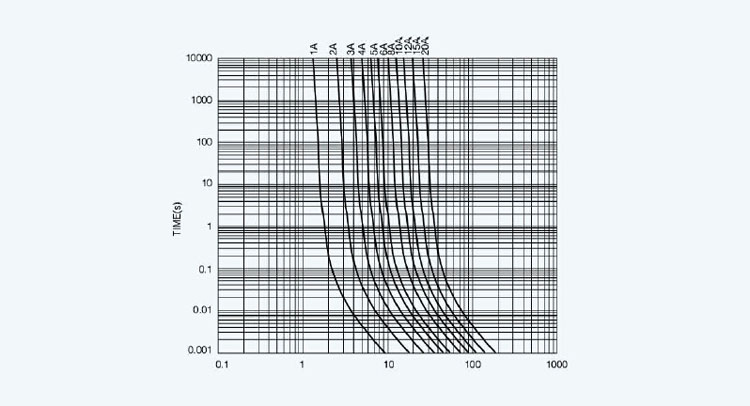

Average I-T Characteristics Curve (For Reference Only)
